Revolving Turntable Heavy Duty 7M (22ft)
$0.00
In stock
Product Details
SKU:
RV7MHD0B
Description

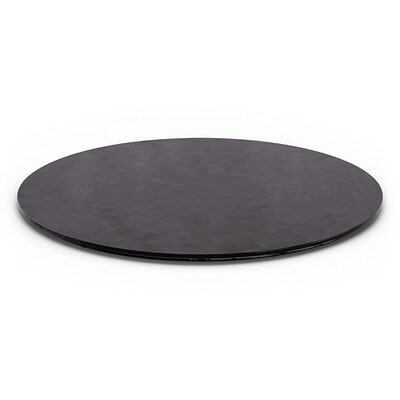

The Revolving Heavy Duty 7M (22 ft 11.6 in) Turntable Stage by Smartstage is designed for exceptional performance in various settings. Featuring a VFD for adjustable speed and reverse functions, it ensures smooth, reliable operation. Constructed with durable materials and a black Hexigrip finish, this stage supports high load capacities and provides a sleek appearance. Ideal for both indoor and outdoor use, it is easy to set up and transport, offering a robust solution for event staging needs.
Features
- High load capacity for heavy-duty applications
- Low-profile floating platform operates quietly

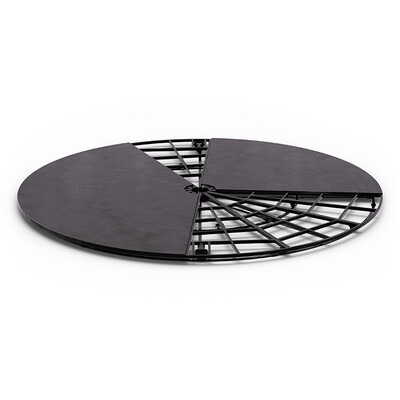

- Breakdown sections for easier transport
- Self-contained drive unit with control
- Central hub for base and top
- Power outlet on the surface
- Variable speed/reversing drive
Specifications
| Height | 13.88 in (35.2 cm) |
| Area | 541 sq. ft (50.26 sq. m) |
| Output RPM | 0 RPM - 0.5 RPM (higher speed on request) |
| Motor power | 2 hp, 13 amps, 3 phase, 240 VAC |
| Number of pieces | Twelve (12) pieces |
| Top surface material | Birch with black Hexigrip finish, 0.71 in (18 mm) thick |
| Total rings of deck | 2 |
| Spread Gross load | 6,744 lbs (3,059 kg) |
| Load per sq. ft | 1,500 lbs (680 kg) |
| Point loading | 1 sq. in at 600 lbs (272 kg) |
| Duty cycle | 10 hours (load dependent) |
| Drive position | Concealed inside of outer ring |
| Surface outlet | 1 x 15A 120VAC |
| Steel coating | Black Oxide coating |
| Shipping weight | ~7,496 lbs (3,400 kg) |
| Shipping dimensions | 87 in x 142 in x 49 in (2.2 m x 3.6 m x 1.25 m) |
| Labor to assemble | 4 hours, 4 persons, tools required |
Related Products
 Revolving Turntable Heavy Duty 6M (19ft) |
 Revolving Turntable - Heavy-Duty 26' (8 meter) |
Disclaimer: Product specifications and availability are subject to change without notice. Please contact us for the most current information.
