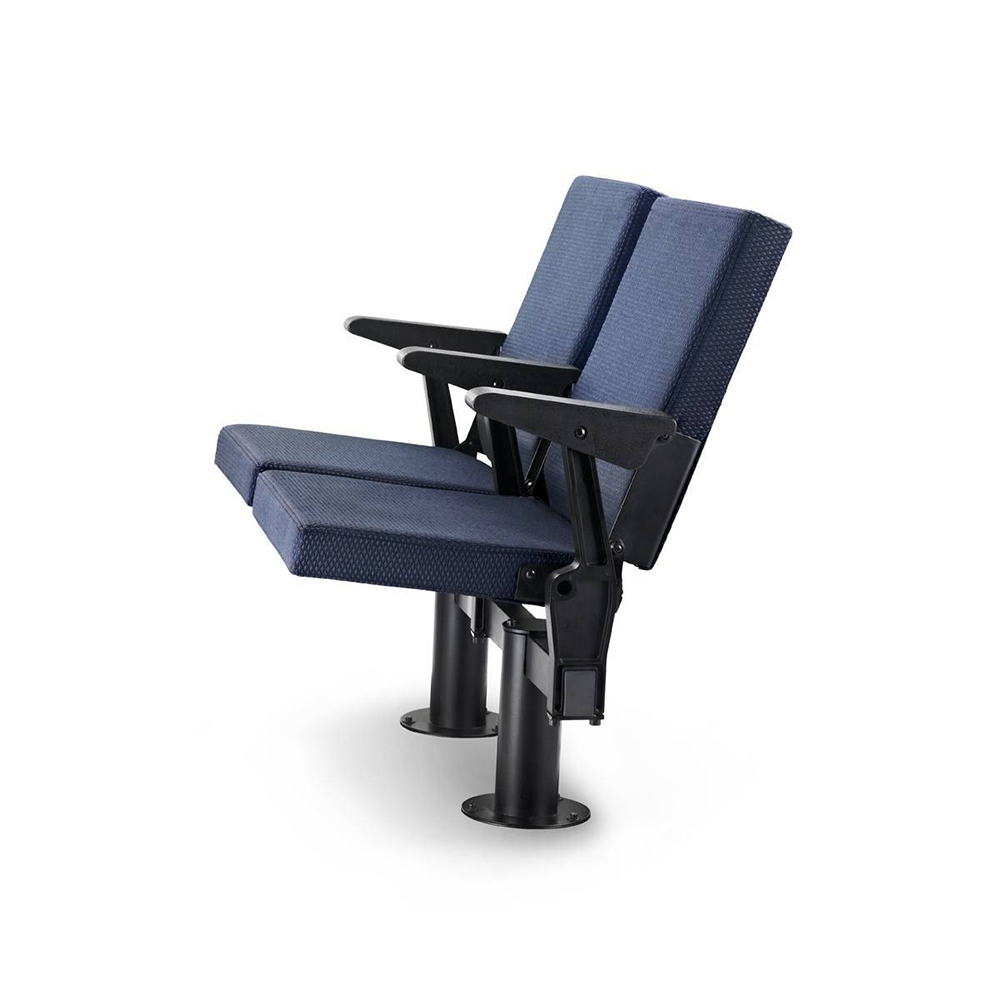

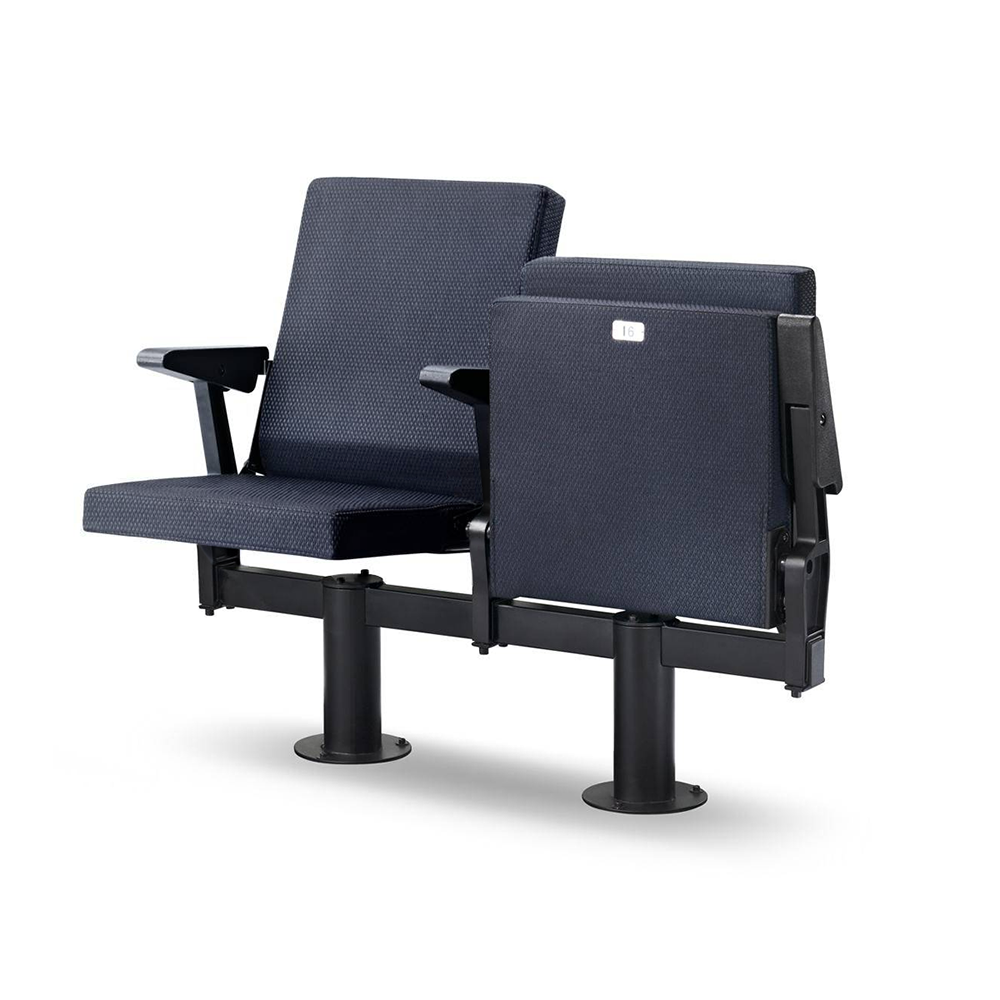

THE OPENFLOW

SERIES 3000 / MODEL 3100 / SKU: SE3100XD

Slim form, ergonomic comfort, and elegant engineering.

The Smartstage Openflow seat is specifically engineered for maximizing seating capacity while maintaining optimal egress and ingress. With its sleek, compact form, your guests will enjoy an easy and unobstructed pathway to their assigned or available seating. This design means efficient traffic flow, enhancing rapid seating, ease of movement, and safety during program starts, finishes, and intermissions.

• Seating capacity: More seats w/o compromising comfort.
• Smooth egress & Ingress: Unobstructed attendee flow.
• Enhanced safety: Facilitates rapid, safe evacuation.
• Elegant design: Complements any venue decor.
• Customization: Learn more below...

A VERSATILE SEAT

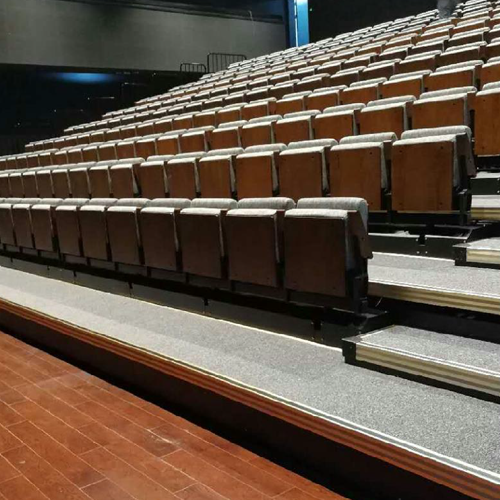

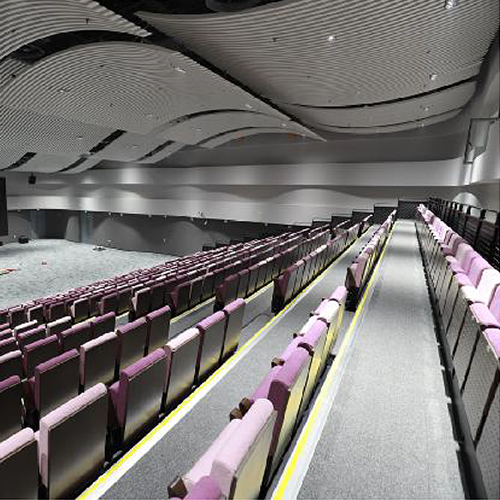

The Openflow offers a lot... from fabric and wood material options to mounting and telescopic solutions, the Openflow has you covered, adding elegance to courtside arenas or versatility to theatrical environments. The Openflow is a dynamic design choice.

FEATURES & BENEFITS

• Aesthetic and practical for theaters or arenas.

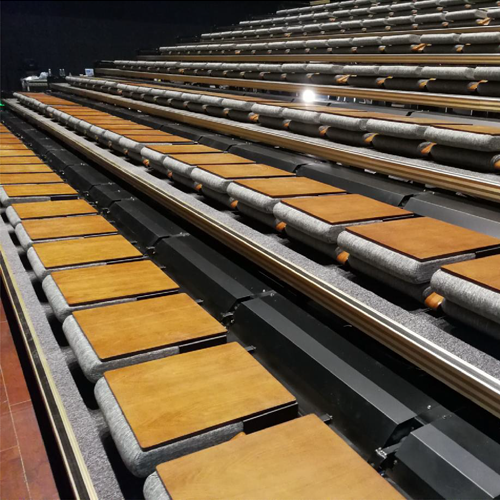

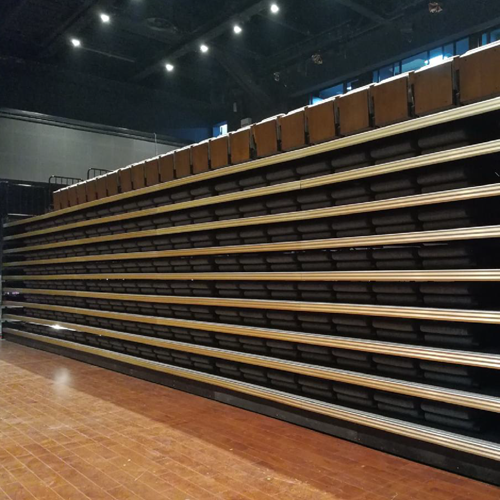

• Compatible with telescopic systems.
• High-quality materials for longevity.
• Designed for value and quality.
• Advanced, ergonomic design supports the lumbar, shoulder, back, and legs for maximum, prolonged comfort over time.

OPTIONAL ACCESSORIES

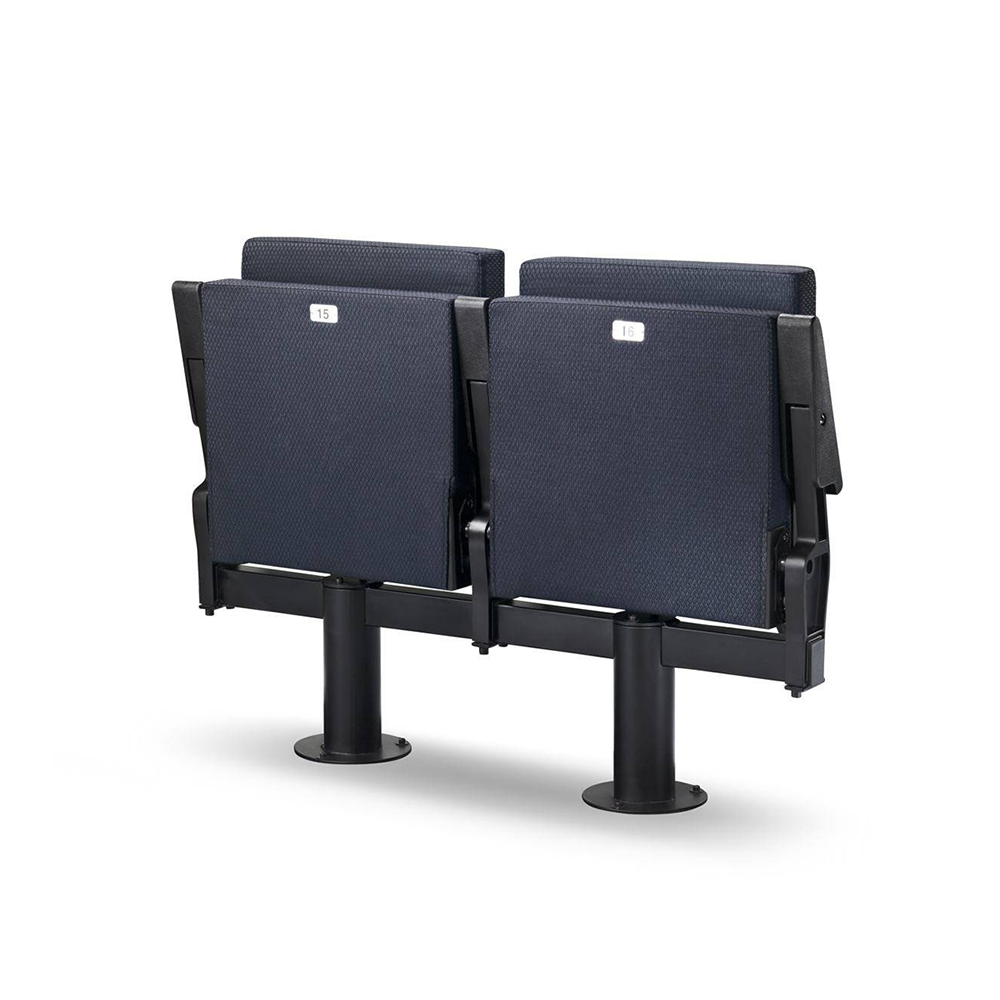

• Sewn seat / row numbers: Available
• LED row & seat ports: Available
• Wiring for data ports: Available
• Wiring for electrical: Available
• Fabric color: Wide selection custom options

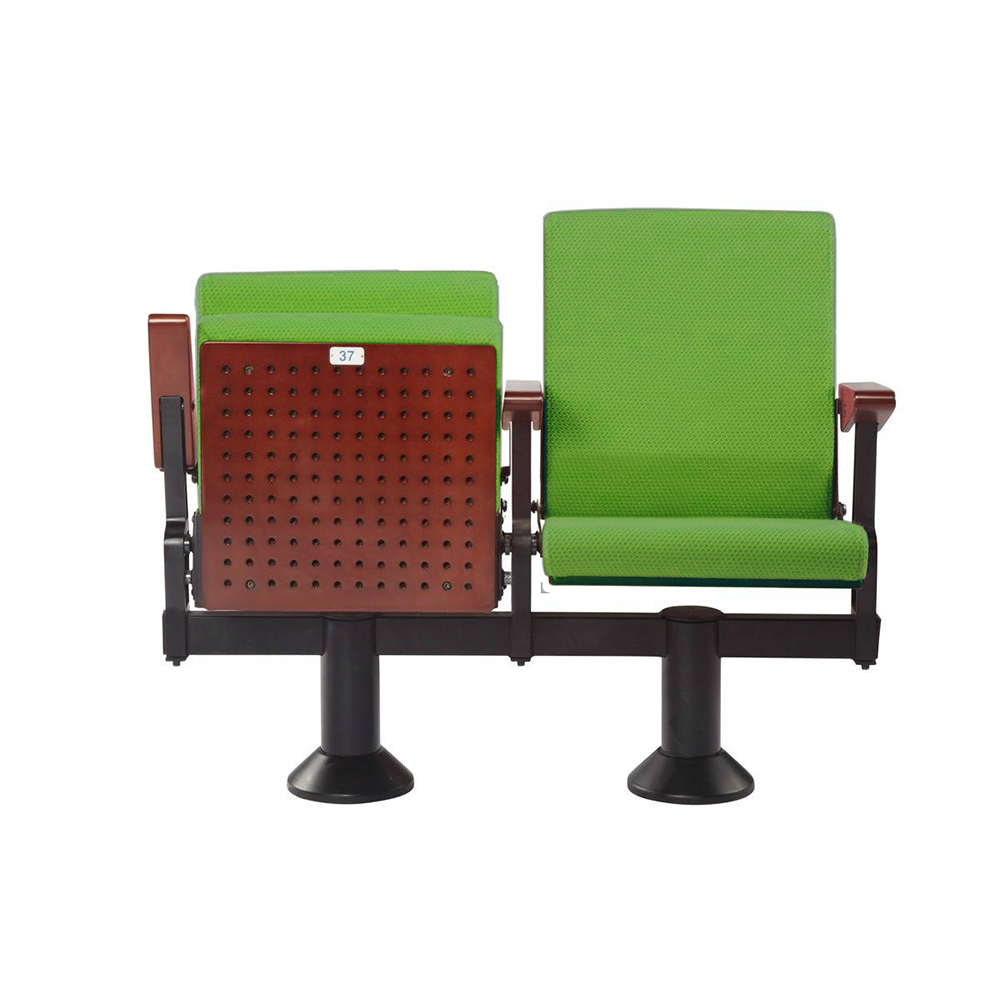

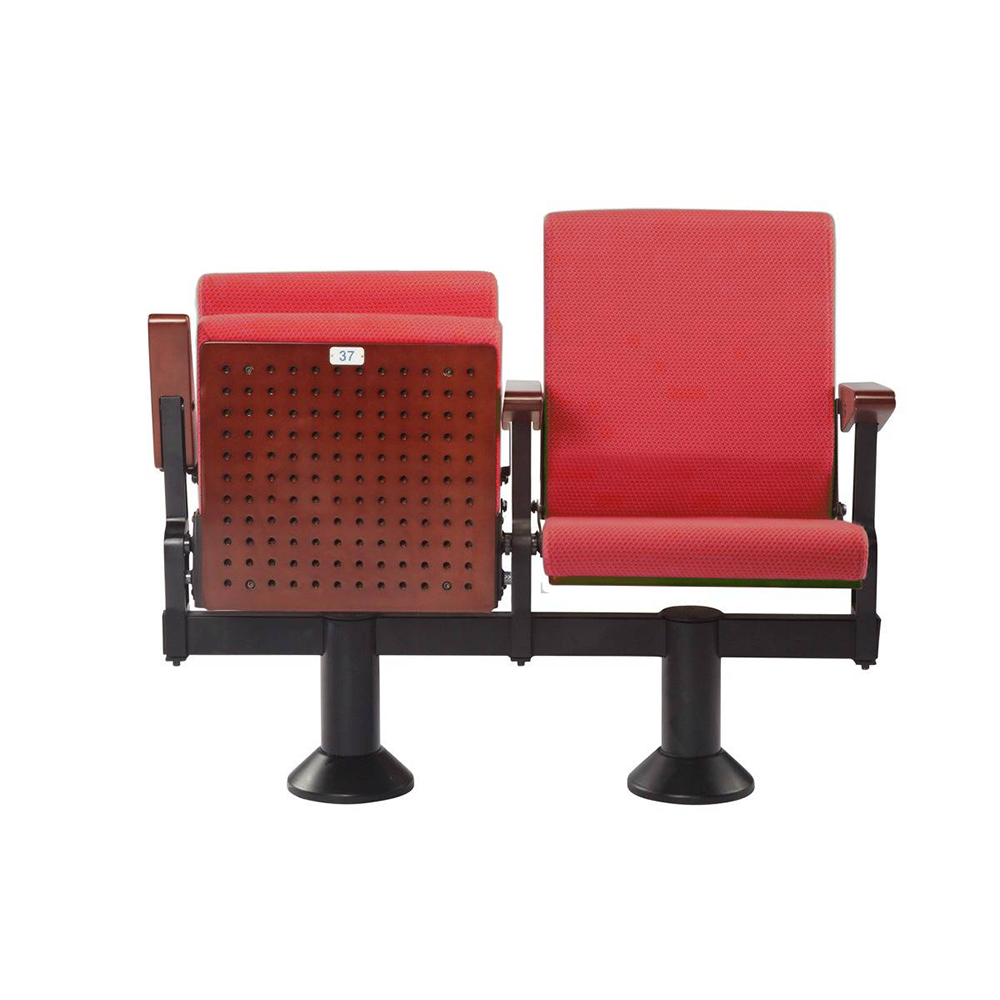

• Seat back material: Full upholstered or plywood with wood veneer finish
• Armrest: Polyurethane or hardwood

SPECIFICATIONS

• Structure: Steel, powder-coated
• Paint: UV-curable powder, TGIC, 1.5 mil, baked at 390° F
• Upholstery: Full upholstered, wood veneer finish
• Foam density: 55 ± 3kg/m³ (LS-12601R/12601B/12601D), 35 ± 3kg/m³ (LS-12601)
• Length: ~1020 mm (~40.16 in)
• Seat width: 510 mm-540 mm (20.08 in-21.26 in)
• Seat depth: 432 mm (17.01 in)
• Seat height: 440 mm-470 mm (17.32 in-18.50 in)
• Armrest height: 622 mm (24.48 in)
• Arm width: 55 mm-60 mm (2.17 in-2.36 in)
• Arm length: ~220 mm [~8.66 in]
• Depth before folding: 170 mm-210 mm (6.69 in-8.27 in)
• Depth w/ full fold: 600 mm-705 mm (23.62 in-27.76 in)
• Height before fold: 771 mm-856 mm (30.35 in-33.70 in)
• Height w/ full fold: 850 mm-935 mm (33.46 in-36.81 in)
• Mounting type: Riser, floor, flush surface, custom
• Side panel: Plastic, wood, fabric, custom logo

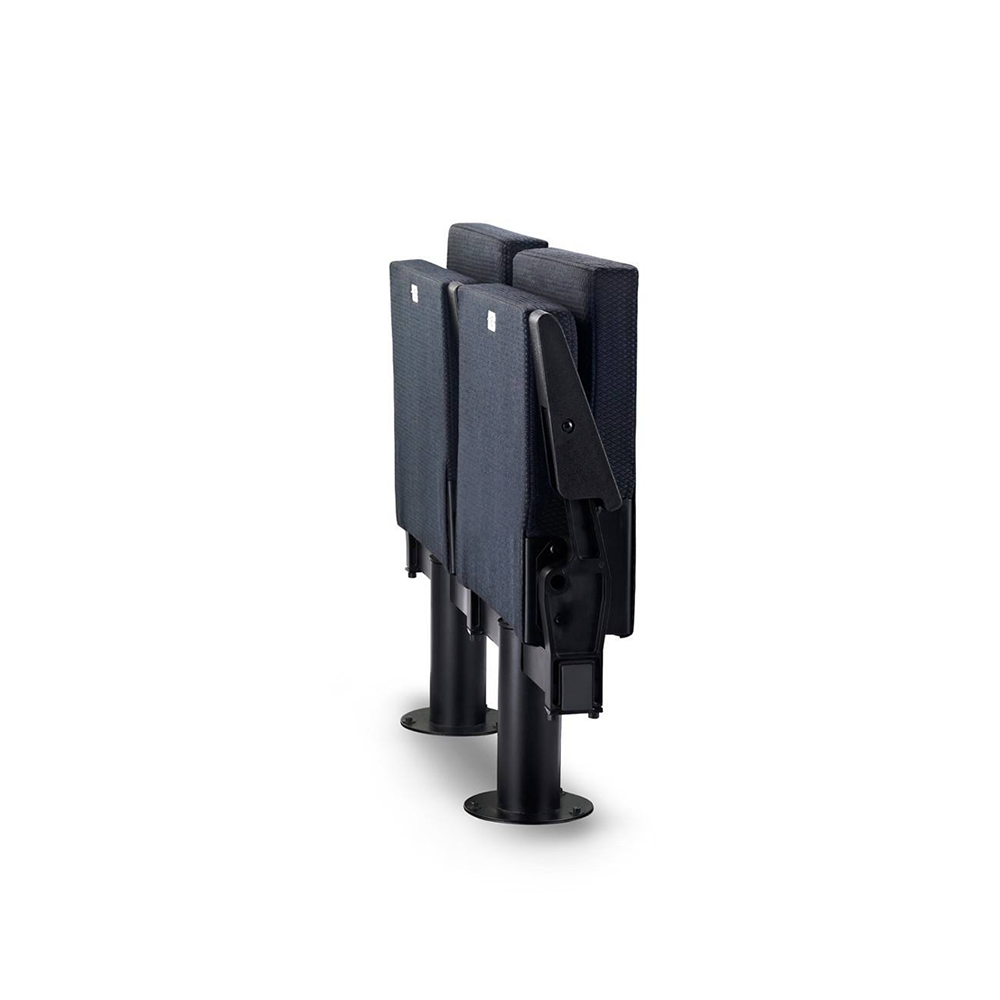

• Seat return: Quiet, self-lifting, 600 lbs load, gravity fold
