TRUSS BASEPLATE
SKU: TRBSB20B / TRBLB36B
Reliable, durable, and versatile engineering design.

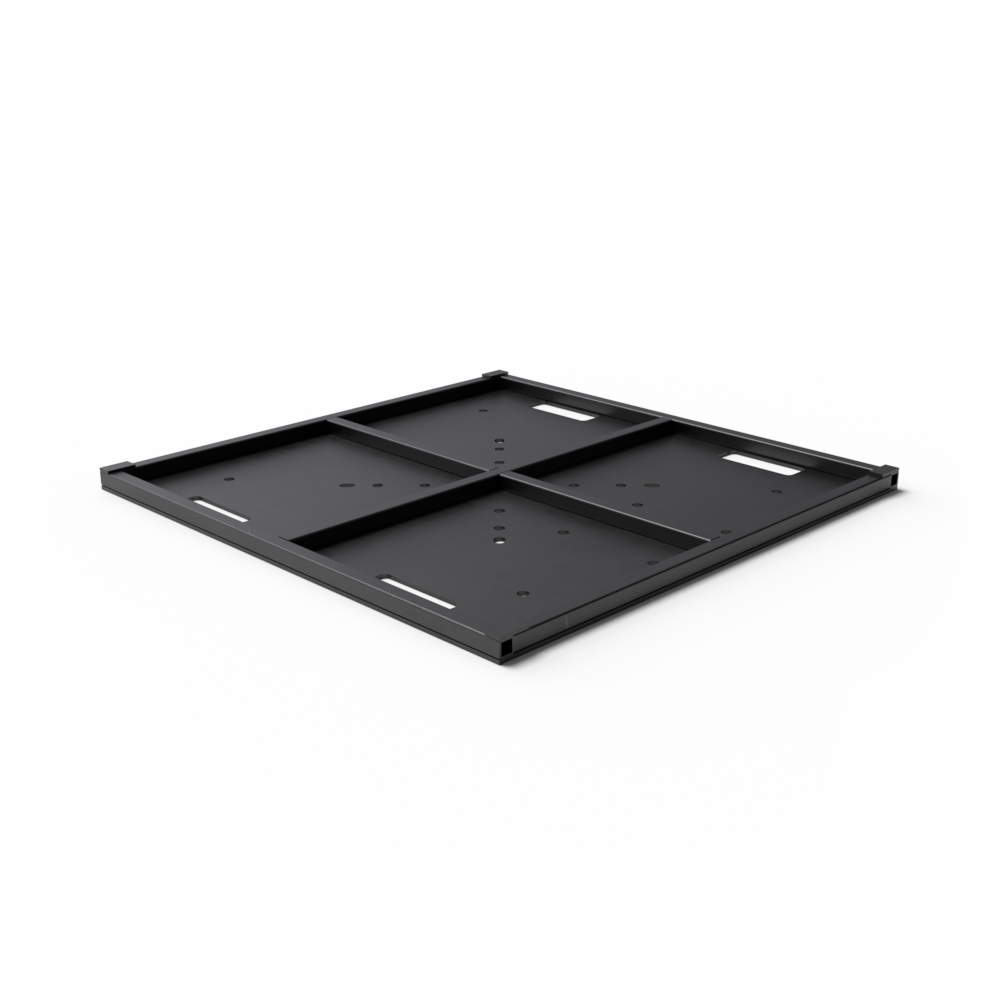

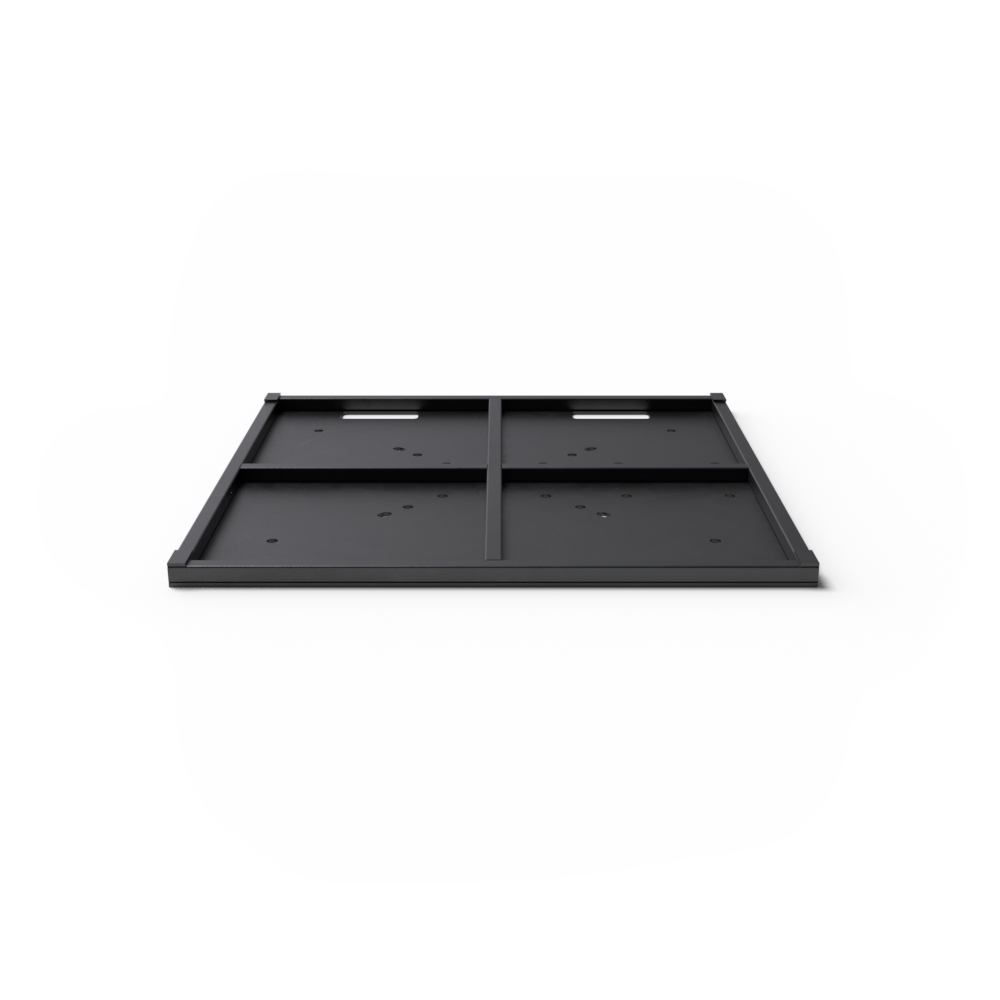

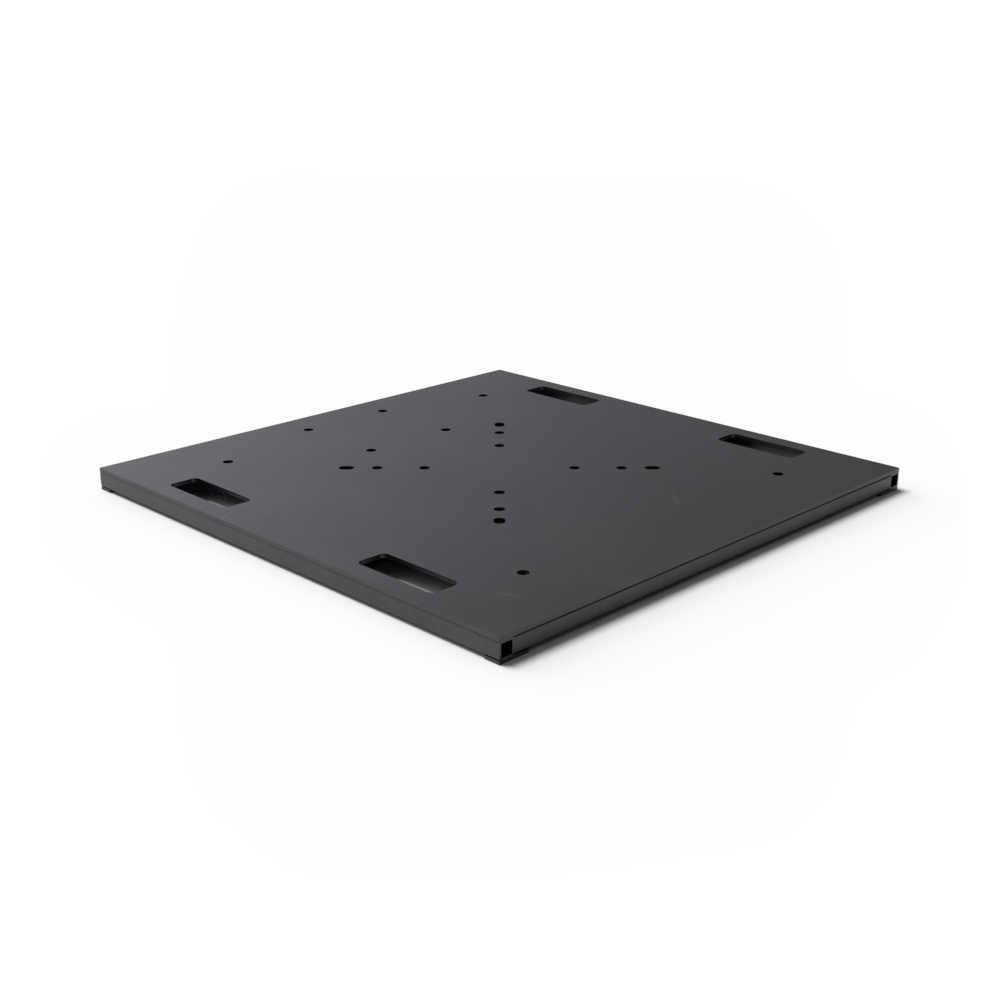

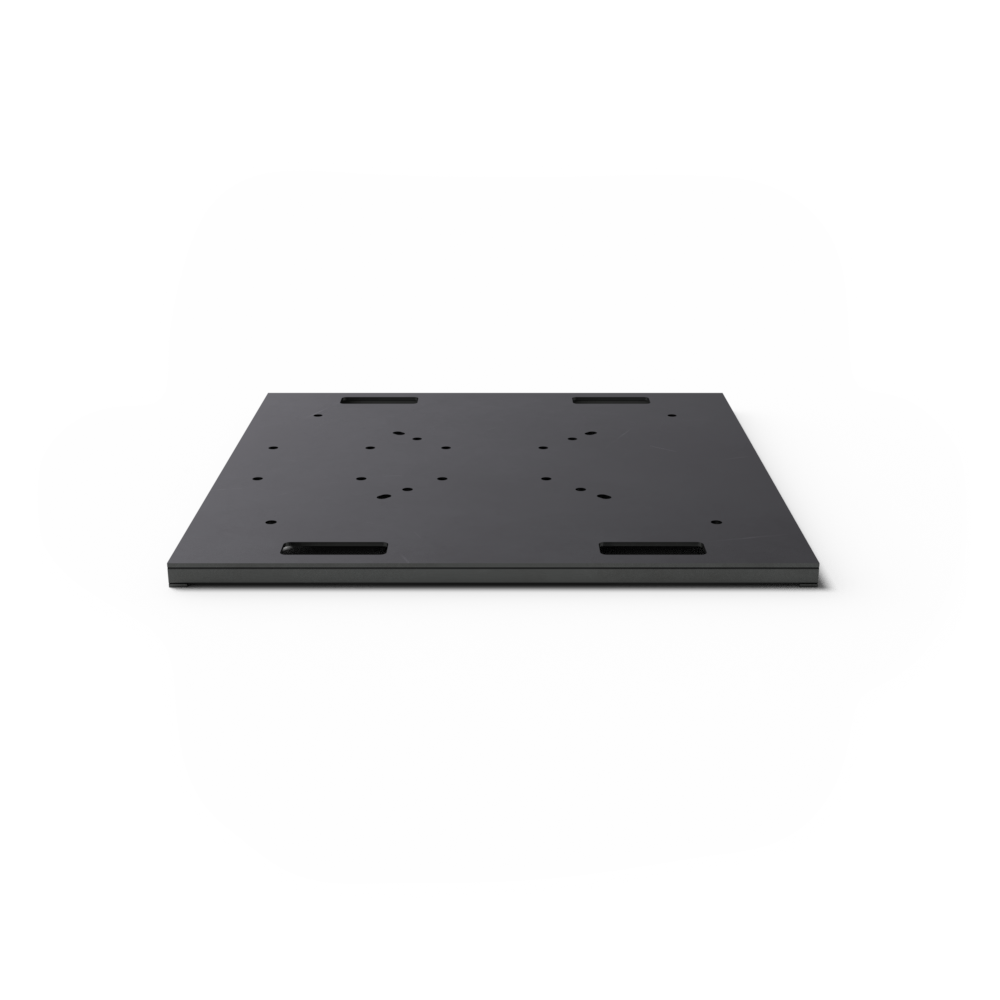

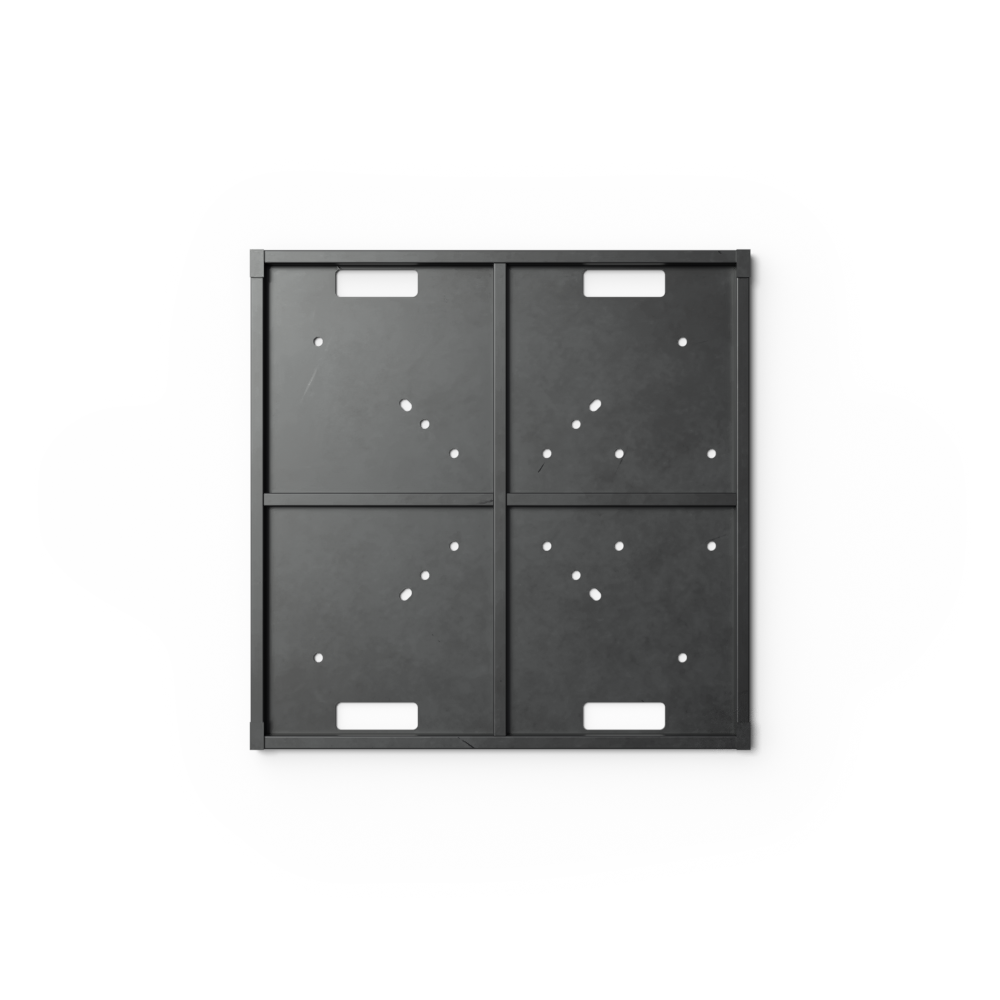

Since 1974, Smartstage has been setting the standard for stage, truss and staging components with ongoing innovation and a commitment to the teams that make events come to life. Our 20” and 36” truss base plates provide a rugged, stable platform for vertical installs. Each plate provides a multitude of connection points, providing maximum versatility for creativity in design and layout / structure options.
- Rugged platform: A solid platform for vertical creations.
- Design flexibility: Designed for both 12" and 16" truss.
- Quality aesthetics: Silver vein black powder coating.
- Creative options: Center receives a 1.5" NPT threaded pipe.
- Multiple connections: 12" can be centered / offset to corner.
CREATIVE OPTIONS
Our vertical truss base mount offers a lot... from customizable structural versatility to innovative accessories and creative design configurations, our truss base has you covered. Perfect for convention and tradeshow booths or corporate and marketing event productions, it brings dynamic creativity and branding opportunities to any environment. Smartstage truss base is a bold and flexible design choice for any event / marketing manager or design team.
The aluminum truss base plate is the backbone for outdoor rated truss systems, stage-to-roof truss builds, and vertical lift truss support. Whether anchoring a modular truss tower or supporting a curved truss extension, this base plate is essential. Use it with a weatherproof truss clamp, low-profile truss cap, or bolt-in truss ring to lock down creative configurations like HD truss beams and rigging pulley trusses.
Perfect for slimline truss adapters, modular truss lighting systems, and branded truss frame displays, it supports stage arch trusses, box truss junctions, and cube corner truss designs. Commonly paired with weld-free truss segments, pre-drilled truss beams, and aluminum truss elbows, it’s also used in stage truss scaffolding and overhead span truss builds. From exhibit booths to touring stages, it’s a foundational favorite.
FEATURES & OPTIONS
- Flexibility: Center accepts 1.5" NPT threaded pipe.
- Connections: 12" can be centered or offset to corner.
- Customization: Multiple sizes and finishes available.
- Accessories: Works seamlessly with wedges, hinges, and corner blocks for creative concepts.
SPECIFICATIONS
- Structure: Steel.
- Size: 16" x 16" x 1.44" (406mm x 406mm x 37mm), 20.5" x 20.5" x 1.44" (521mm x 521mm x 37mm).
- Weight: 12" = xlbs (), 16" = 35lbs (15.88kg), 20.5" = xlbs ().
- Finish: Silver vein black powder coating.
- Connections: Used for 12" and 16" truss.
- Requirements: 16" truss requires faceplate adapter.
