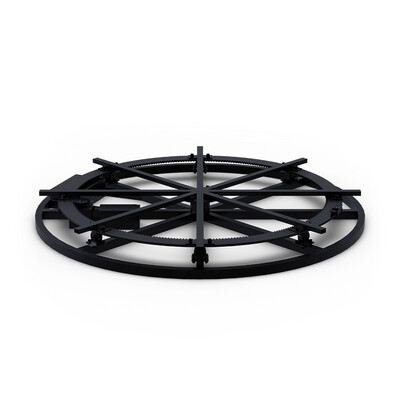

Revolving Platform Heavy Duty 1.5M (5ft)
RV15MHDB
$0.00
In stock
1
Product Details
Features
- Low-profile with solid load capacity
- All-in-one unit for rapid deployment
- Quick and easy storage / transport
- Self-contained drive unit
- 3-prong power cable
- Wireless infrared remote
- Variable speed / reversing drive
Specifications
| SKU | RV15MHDB |
| CSI | 14 70 00 |
| Size | 4’ 9” (1.5 m) |
| Dimensions | 23.25 sq in (150 sq cm) |
| Height | 5.96" (15 cm) |
| Gross spread load | 2,000 lbs (907.19 kg) |
| Load (square foot) | 175 lbs (80 kg) |
| Load (square cm) | 1 lbs (0.45 kg) |
| Surface material | Plywood with black, anti-slip surface |
| Drive position | Inside of outer ring |
| Output RPM | Variable 0.25-0.67 RPM |
| Movement | Reverse, no braking |
| Motor power | 1/20 hp, 2 amps, 120 VAC |
| Duty cycle (load dependent) | 10 hrs |
| Remote control | Wireless remote |
| Shipping weight | ~324 lbs (147 kg) |
| Shipping size | 61” x 61” x 7.5” (155 cm x 155 cm x 19 cm) |
| Shipping volume | ~32 cu ft (0.91 cu m) |
| Shipping segments | Single unit (N/A) |
| Labor to assemble | Single unit (no tools required) |
