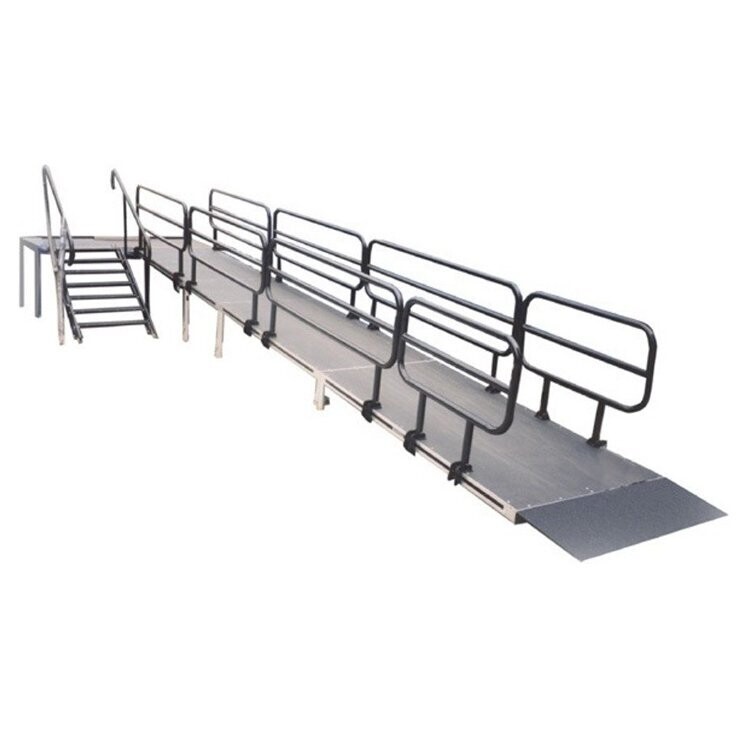

ADA Ramp Kit

Name: ADA Ramp with Hexigrip Finish: Safe and Slip-Resistant
SKU: 12369
Availability: InStock

Store / Featured

$0.00

Quantity

Enter your text

In stock

Product Details

Smartstage loading and ADA ramps, truly flexible for smart stage builders. Freedom to build in any direction, any height and over any terrain. Simple to erect, set legs, decks, rail and go go go!

Smartstage ramps have a self-inherent “hexigrip” finish to provide long lasting ultimate grip to anti-slip action, even when wet.

Specifications

Deck 4 x 8 black w/hexigrip top
Fastfold frame legs 4×8 2-3′ black telescopic leg 6″ leveling foot
Fastfold frame legs 4×8 3-5′ black telescopic leg 6″ leveling foot
Single leg at 6″
Single leg at 12″
Locator plate 2 node
Guardrail 8′ at 36″
Deck clamp
2 leg clamp

They all come with black baked finish are lightweight with all the smart features. We will make any size frame as a custom.

ADA ramp components;

Support structure is to be aluminum alloy 6061-T6 with a “scissor action” fold up feature and / or aluminum single legs preset to required height / position. Frame must have a device which sets opening position correctly. All diagonal bracing is to be integral with no additional parts or braces. Leg loading capacity must be 6600 lbs per leg. Support frame must have four legs. Each leg will also have removable locator plates with one two or four plastic nodes. Locator plates will guide deck into position for lock-off by tightening of deck corner tightening knob.

All open sides must have guardrail with lateral compressive strength of 150lbs firmly connected to ramp including landings. All changes transitions must be gap free.

Features

Can bridge obstacles	Baked on black finish	Variable height legs for uneven terrain (optional)
Outdoor show resistant	Lightweight and strong	Years and years of proven tested durability
Can be installed on uneven terrain	Re-positioning as desired

Smartstage Ramp Demonstration
