4 x 8 FastFold Frames (Stage Legs)
+3

4 x 8 FastFold Frames (Stage Legs)

STF4810X
$0.00
In stock
1
Product Details
SKU: STF4810X

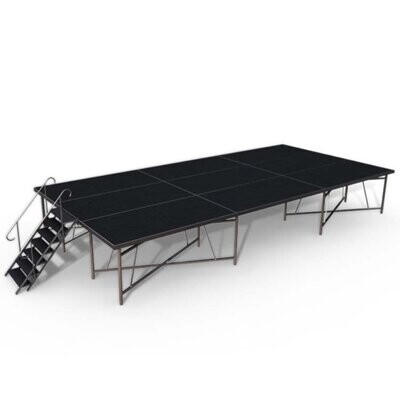

Smartstage FastFold frames (Stage Deck Legs) are truly innovative for portable stage designs. Freedom to build in any direction, any height, over any terrain with finite leveling foot. Simple to use with one person operation. Available for both 3×8 Decks (commonly used in multi-level stage design) and 4×8 Decks (commonly used for frequent assembly of flat stages)

Specifications

  • Aluminum alloy 6061-T6 with a “scissor action” fold up feature.
  • All diagonal bracing is integral with no additional parts or braces.
  • Leg loading capacity is 6600 lbs.
  • 4×8 FastFold frames (fixed and variable) have four legs each with a removable 6” leveling jack.
  • 3×8 fixed height FastFold frames have four legs each a cap foot.

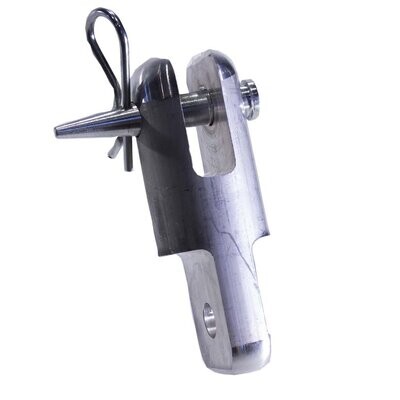

  • Variable height legs have adjustments every 2” with 5/8″ steel pin on a spring-loaded mechanism hand operated and concealed within the support structure framework.

Features

Folds for storage. Load tested and inspected Baked on black finish. No Deck clamps are required
One person to set up Variable height legs. Re-position as desired. Locator plates installed before decks.
Can bridge obstacles Outdoor show resistant. Faster & easier assembly & disassembly. Lightweight & strong enough to hold a car
Generic fit to most brands Understage storage Can be installed on uneven terrain.

Cutsheet Download

Fast-fold Staging System Demonstration
