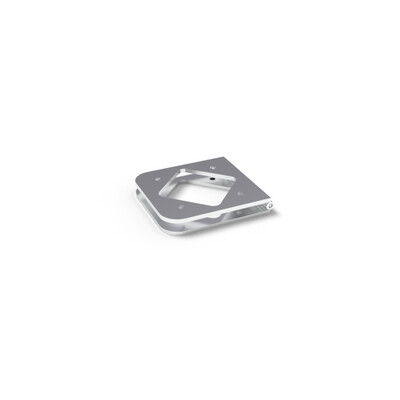

12" Hinge Plate

Specifications

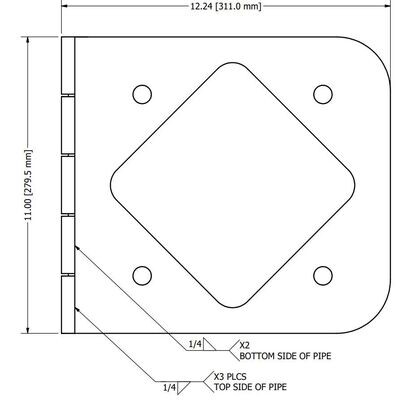

• Hinge for 12″ wide x 12″ high truss.

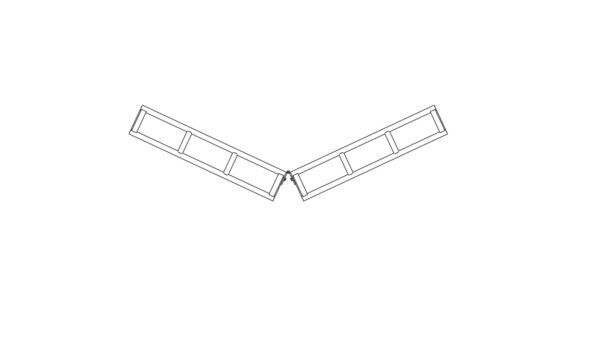

• Compatible with all other Smartstage 12 inch truss lengths curves angled corners base mounts hinges and hubs. Hinge allows you to join trusses at ANY angle and allows moving rig options.
• Weight: Hinge with 4 bolts weight is 8.5lbs.

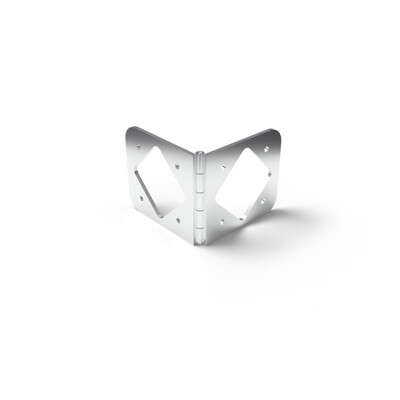

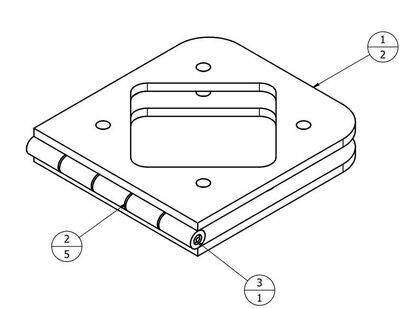

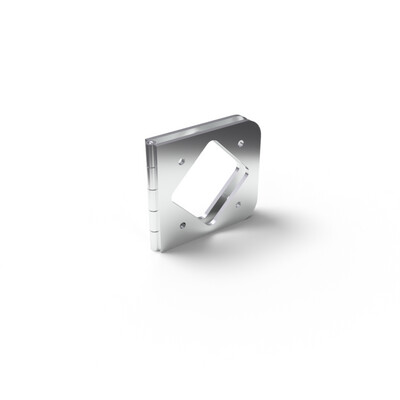

• Truss bolts and tools are supplied for assembly. Flat steel hinge that mounts to the end of 12″ truss making it possible to set truss configurations to any angle.
• Comes natural aluminum silver color options are available.

Smartstage strongly recommends that you engage the services of a licensed engineering professional to analyze complex loading configurations and/or conditions.

Features

How It Works

Fast and simple bolt-together aluminum Lego-like blocks. Whatever you imagine you can build. Smartstage truss can run in ANY direction at ANY length desired allows you to build multi-truss blocks that covers bridge grids artistic structures. Smartstage trusses configure fast and easily. Simply draw your dream and assemble the sections 4 bolts each end in the configuration of your desire. Hinges can be used on all Smartstage 12-inch truss

Smartstage box truss 12″ x 12″ silver aluminum bolt connection is designed and engineered with life-dependable welds to perform to the highest standards. TUV & SGS certified worldwide load tested and x-rayed for quality assurance. Smartstage 12-inch box truss/lighting truss comes in multiple sizes for lighting show performances and multiple applications. Smartstage lighting truss is easy to install with an integral design simple bolt style connection and comes in multiple lengths from 1′ to 10′ with numerous accessories wedges hinges and corner blocks. Smart trusses are available in many lengths and finish curved and angled with a wide range of connection hardware available. Smart trusses can be configured to fulfill any creative structural concept you design for your event venue or tour.

Cutsheet Download
